Industrial Common Rail Injector Nozzle Mating Face Grinding Machine G14-71 | BEACON MACHINE Diesel Nozzle Resurfacing Tool

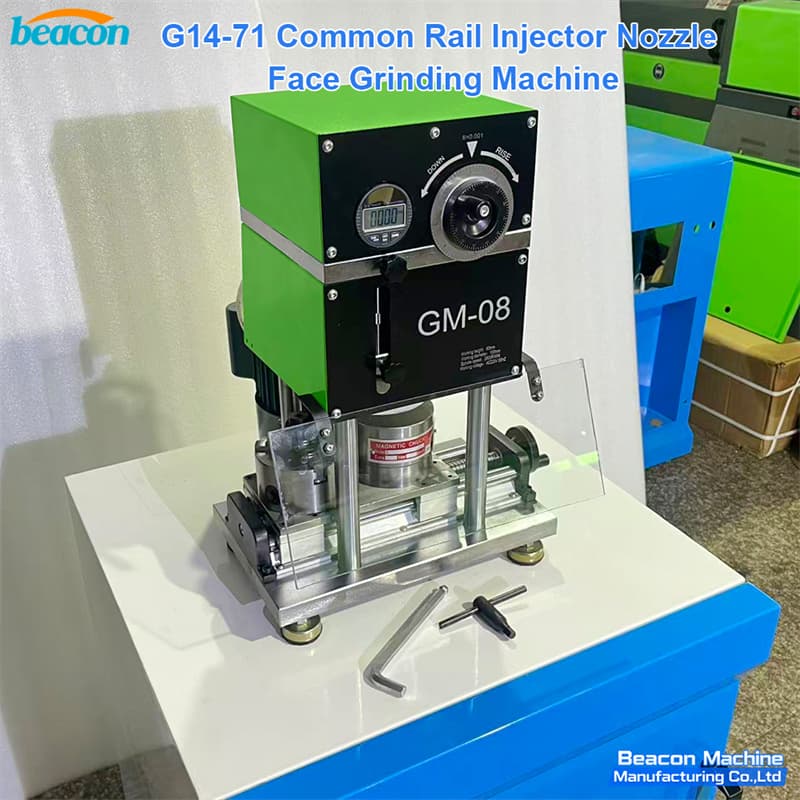

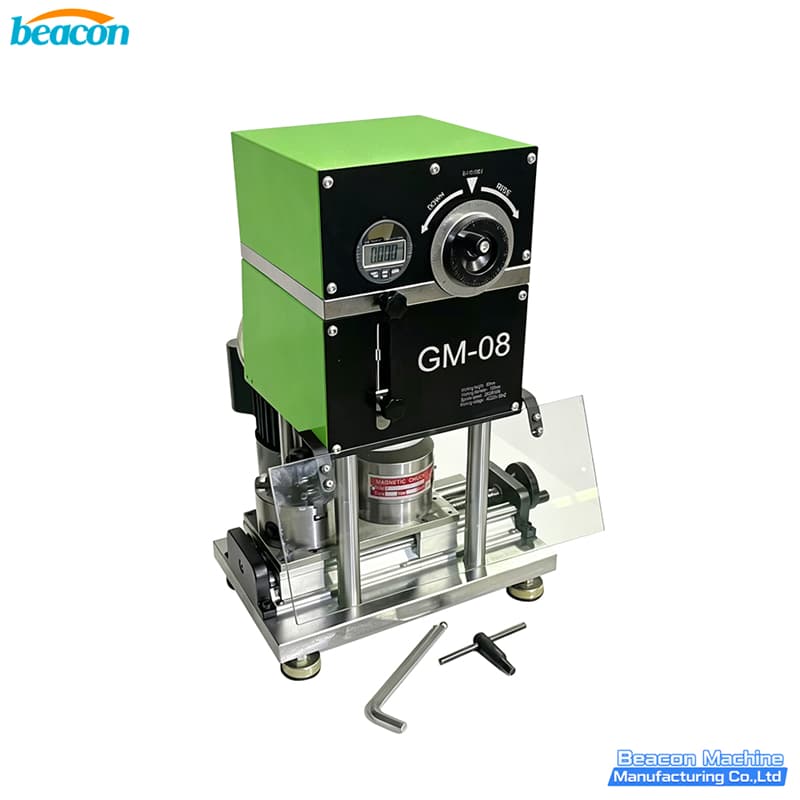

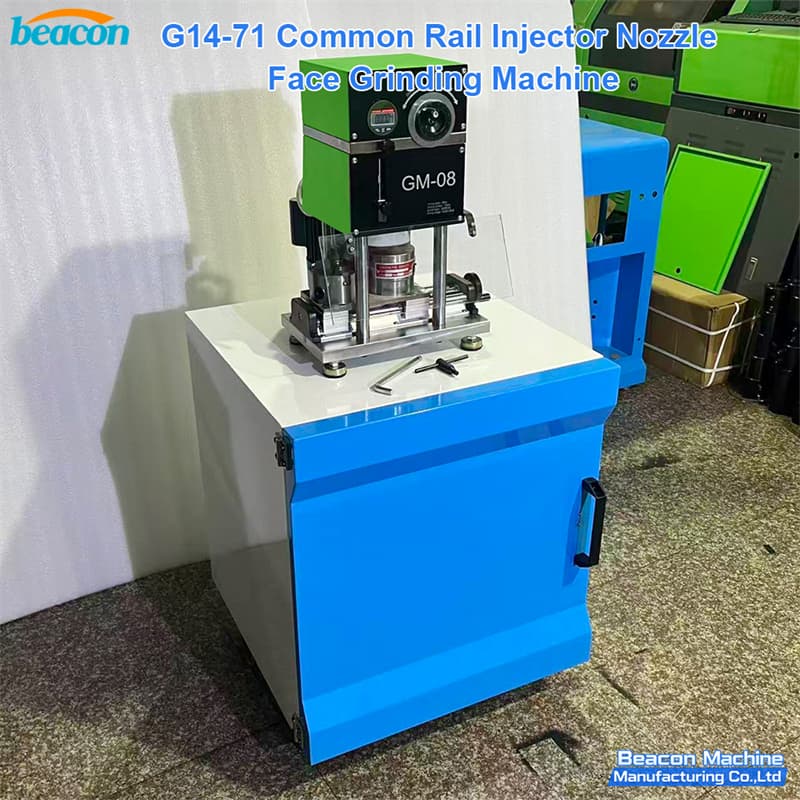

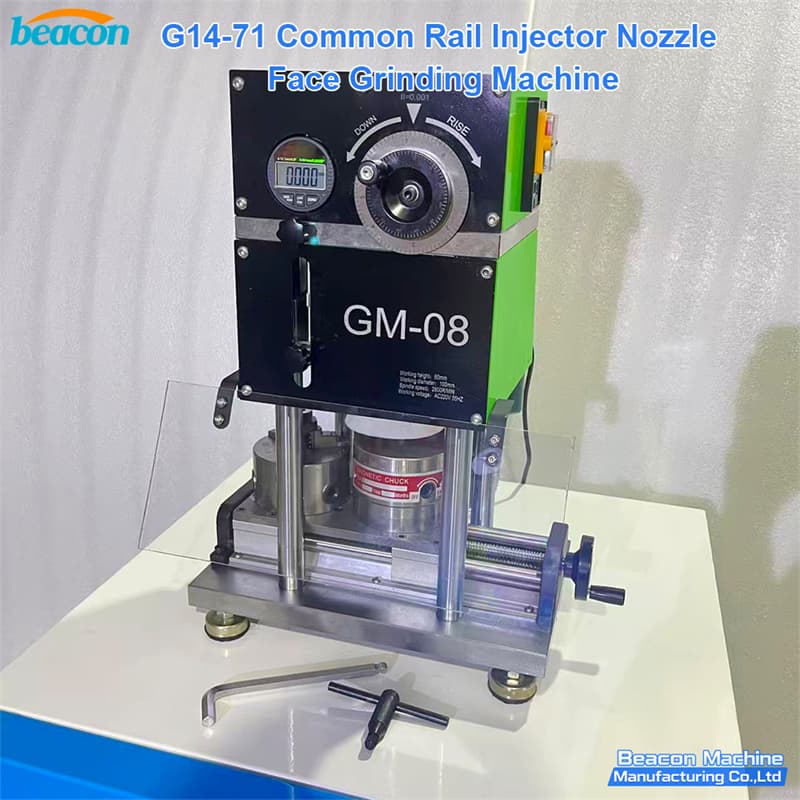

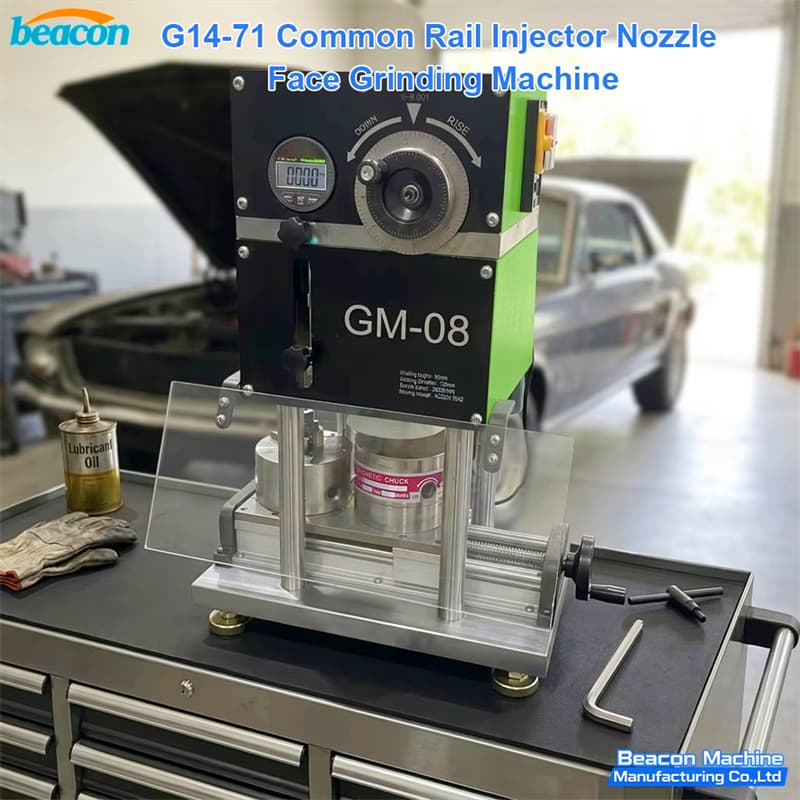

Ensuring an absolute hydraulic seal between the injector body and nozzle cap requires micron-level perpendicularity. The G14-71 is an industrial common rail injector nozzle mating face grinding machine developed to repair micro-cavitation, scouring marks, and carbon erosion on diesel nozzle flat surfaces. Working alongside your workshop's multi-function common rail test bench, this precision apparatus restores the precise mating plane, preventing internal pressure bleed and ensuring that post-rebuild delivery volumes remain consistent under extreme 2500-bar combustion rail conditions.

Engineered with a precision digital micrometer dial reading down to 0.001 mm and an electromagnetic chuck base, the machine secures diverse nozzle geometries vibration-free during high-speed polishing. Whether reconditioning passenger car solenoid nozzles or heavy-duty commercial piezo tips, this heavy-duty diesel injector nozzle face grinding machine provides tactile micro-feed depth control. BEACON MACHINE precision engineering guarantees reduced scrap rates, rapid turnaround, and factory-standard mechanical surface restoration across all multi-brand diesel fuel injection rebuilding procedures.

Engineering Excellence & Workshop Advantages

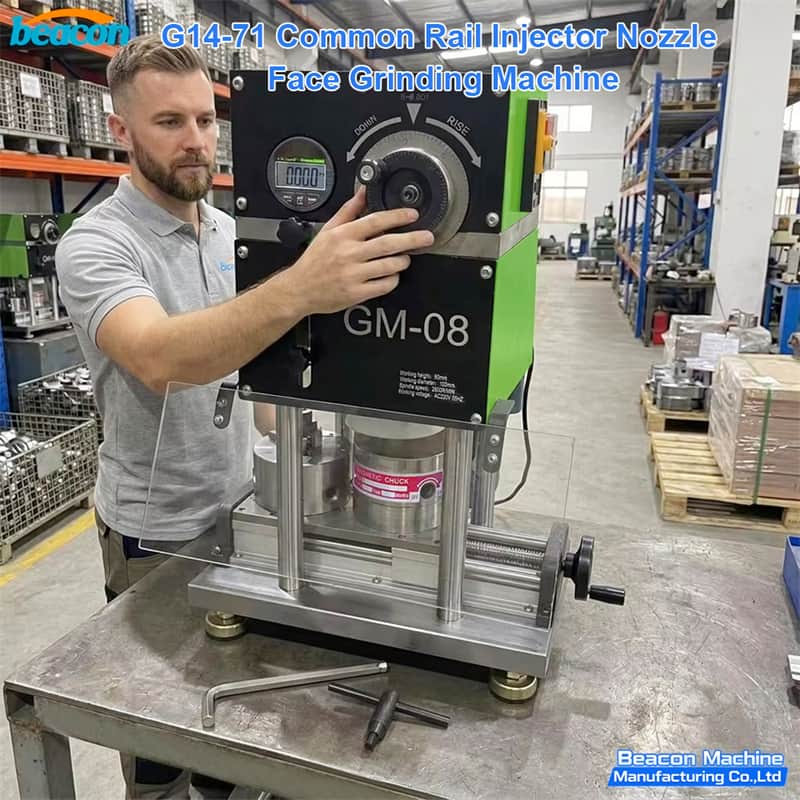

• 0.001 mm Digital Displacement Feedback: High-precision digital display couples directly to the micro-feed spindle, enabling operators to control grind depth down to a single micron.

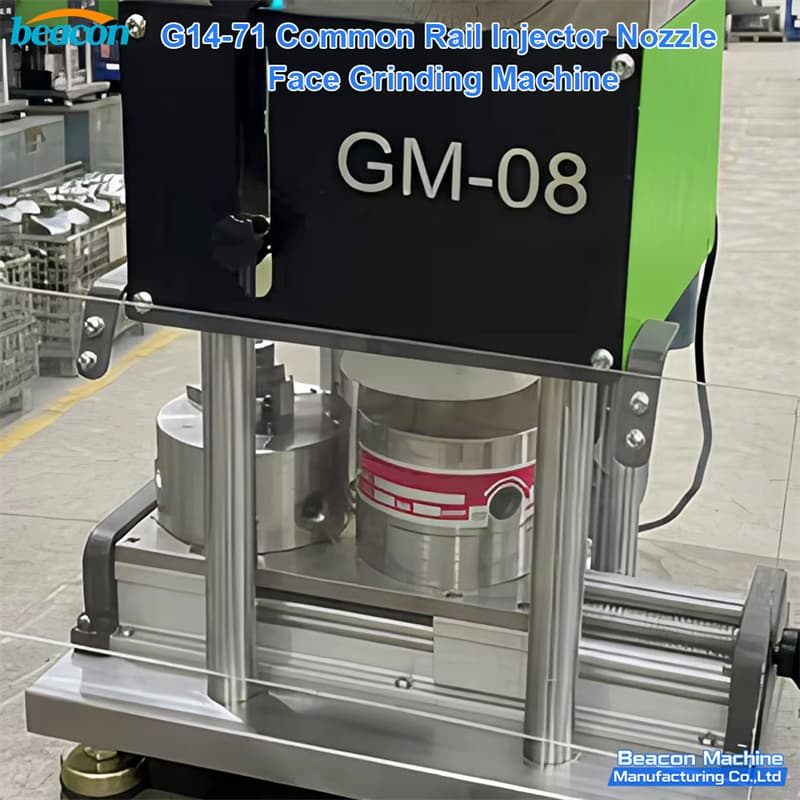

• Permanent Magnetic Chuck System: Industrial-grade Φ100 mm magnetic base firmly secures hardened nozzle steel without distortion, ensuring absolute flatness and parallel contact planes.

• Dual Chrome-Hardened Linear Columns: Twin heavy-duty vertical guide pillars eliminate spindle deflection and vibration, guaranteeing consistent surface smoothness across repeated runs.

• Universal Multi-Brand Restoration: Engineered to recondition sealing faces for Bosch CRI/CRIN, Denso G2/G3/G4, Delphi DFI, and Caterpillar unit injector nozzles.

• Integrated Protective Shield: Transparent polycarbonate deflection guard keeps grinding coolant and metal particulates enclosed, maximizing technician safety during continuous grinding.

• Factory Engineering & Consumable Support: BEACON MACHINE provides worldwide factory warranty, operational training video guides, and direct supply of replacement diamond grinding wheels and accessories.
